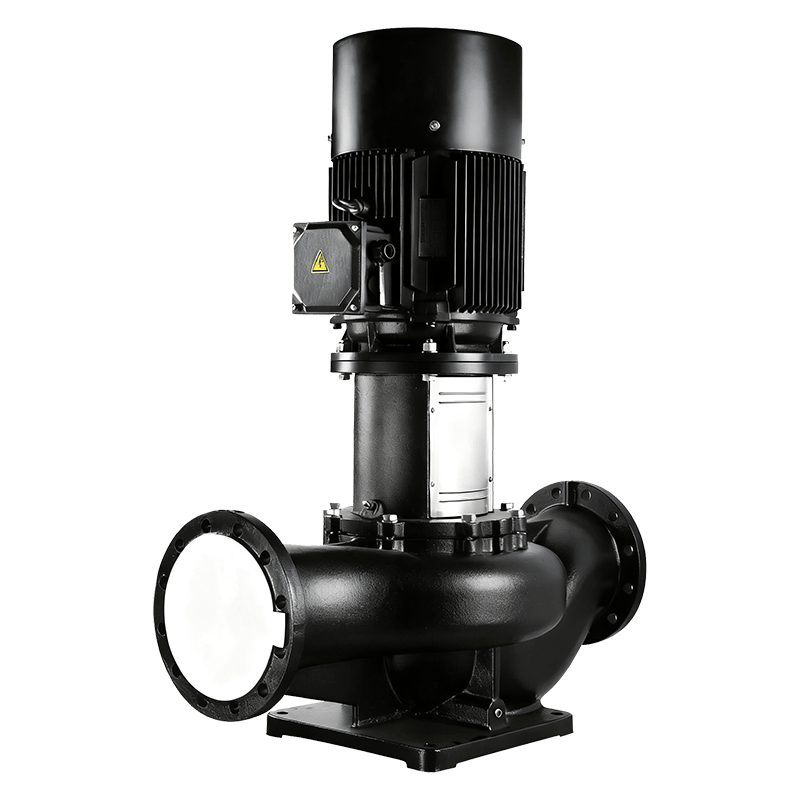

TD-G

Cantidad:
Estado de Disponibilidad:





Preguntar Añadir al carrito

Descripción del Producto

Número de serie	Modelo de bomba	Q [m³/h]	altura [m]	norte [r/min]	NPSH [m]	Tensión estándar del motor [V] - 1×220V P2 [kW]	Tensión estándar del motor [V] - 3×380V P2 [kW]
1	TD32-14G/2	8	14	2900	2.5	0.75	0.75
2	TD32-18G/2	8	18	2900	2.5	1.1	1.1
3	TD32-21G/2	12.5	21	2900	2.5	1.5	1.5
4	TD32-26G/2	12.5	26	2900	2.5	2.2	2.2
5	TD32-33G/2	12.5	33	2900	2.5	-	3
6	TD32-40G/2	12.5	40	2900	2.5	-	4
7	TD32-50G/2	12.5	50	2900	2.5	-	5.5
8	TD40-14G/2	8	14	2900	2.5	0.75	0.75
9	TD40-16G/2	12.5	16	2900	2.5	1.1	1.1
10	TD40-21G/2	12.5	21	2900	2.5	1.5	1.5
11	TD40-20G/2	20	20	2900	2.5	2.2	2.2
12	TD40-26G/2	20	26	2900	2.5	-	3
13	TD40-30G/2	25	30	2900	2.5	-	4
14	TD40-36G/2	25	36	2900	2.5	-	5.5
15	TD40-48G/2	25	48	2900	2.5	-	7.5
16	TD50-32G/2	12.5	32	2900	2.5	-	3
17	TD50-39G/2	12.5	39	2900	2.5	-	4
18	TD50-49G/2	12.5	49	2900	2.5	-	5.5
19	TD50-59G/2	12.5	59	2900	2.5	-	7.5
20	TD50-80G/2	12.5	80	2900	2.5	-	11
21	TD50-12G/2	16	12	2900	2.5	1.1	1.1
22	TD50-15G/2	20	15	2900	2.5	1.5	1.5
23	TD50-18G/2	25	18	2900	2.5	2.2	2.2
24	TD50-24G/2	25	24	2900	2.5	-	3
25	TD50-28G/2	30	28	2900	2.5	-	4
26	TD50-35G/2	30	35	2900	2.5	-	5.5
27	TD50-40G/2	35	40	2900	2.5	-	7.5
28	TD50-50G/2	40	50	2900	3	-	11
29	TD50-60G/2	50	60	2900	4	-	15
30	TD50-70G/2	50	70	2900	4	-	18.5
31	TD50-81G/2	50	81	2900	4	-	22
32	TD65-37G/2	25	37	2900	3	-	5.5
33	TD65-48G/2	25	48	2900	3	-	7.5
34	TD65-15G/2	30	15	2900	3	2.2	2.2
35	TD65-20G/2	30	20	2900	3	-	3
36	TD65-22G/2	40	22	2900	3	-	4
37	TD65-30G/2	40	30	2900	3	-	5.5
38	TD65-34G/2	50	34	2900	3	-	7.5
39	TD65-41G/2	50	41	2900	3	-	11
40	TD65-51G/2	50	51	2900	3	-	15
41	TD65-61G/2	50	61	2900	3	-	18.5
42	TD65-68G/2	50	68	2900	3	-	22
43	TD85-85G/2	50	85	2900	3	-	30
44	TD80-41G/2	50	41	2900	3	-	11
45	TD80-48G/2	50	48	2900	3	-	15
46	TD80-13G/2	50	13	2900	3	-	3
47	TD80-18G/2	50	18	2900	3	-	4
48	TD80-23G/2	50	23	2900	3	-	5.5
49	TD80-29G/2	50	29	2900	3	-	7.5
50	TD80-32G/2	70	32	2900	3	-	11
51	TD80-39G/2	80	38	2900	4.5	-	15
52	TD80-47G/2	80	47	2900	4.5	-	18.5
53	TD80-54G/2	80	54	2900	4.5	-	22
54	TD80-60G/2	80	60	2900	4.5	-	22
55	TD80-67G/2	80	67	2900	4.5	-	30
56	TD100-9/2	50	9	2900	3	2.2	2.2
57	TD100-15/2	60	15	2900	3	-	4
58	TD100-17G/2	80	17	2900	4	-	5.5
59	TD100-22G/2	80	22	2900	4	-	7.5
60	TD100-27/2	100	27	2900	4	-	11
61	TD100-33/2	100	33	2900	4	-	15
62	TD100-35G/2	100	35	2900	4	-	18.5
63	TD100-40G/2	100	40	2900	4	-	22
64	TD100-48G/2	100	48	2900	4	-	22
65	TD100-52G/2	130	52	2900	5	-	30
66	TD125-11G/4	120	11	1450	4	-	5.5
67	TD125-14G/4	120	14	1450	4	-	7.5
68	TD125-19G/4	140	19	1480	4	-	11
69	TD125-22G/4	160	22	1480	4	-	15
70	TD125-28G/4	160	28	1480	4	-	18.5
71	TD125-32G/4	160	32	1480	4	-	22
72	TD125-40G/4	160	40	1480	4	-	30
73	TD125-48G/4	160	48	1480	4	-	37
74	TD150-12.5G/4	200	12.5	1480	4	-	11
75	TD150-18G/4	200	18	1480	4	-	15
76	TD150-22G/4	200	22	1480	4	-	18.5
77	TD150-27/4	200	27	1480	4	-	22
78	TD150-33/4	200	33	1480	4	-	30
79	TD150-35/4	200	35	1480	4.5	-	30
80	TD150-42/4	200	42	1480	4.5	-	37
81	TD150-50/4	200	50	1480	4.5	-	45
82	TD150-30.5/4	300	30.5	1480	4.5	-	37
83	TD150-37/4	300	37	1480	4.5	-	45
84	TD150-24.5/4	400	24.5	1480	6.5	-	37
85	TD150-30/4	400	30	1480	6.5	-	45
86	TD200-15Q/4	260	15	1480	4	-	15
87	TD200-18Q/4	260	18	1480	4	-	18.5
88	TD200-28Q/4	260	28	1480	4	-	30
